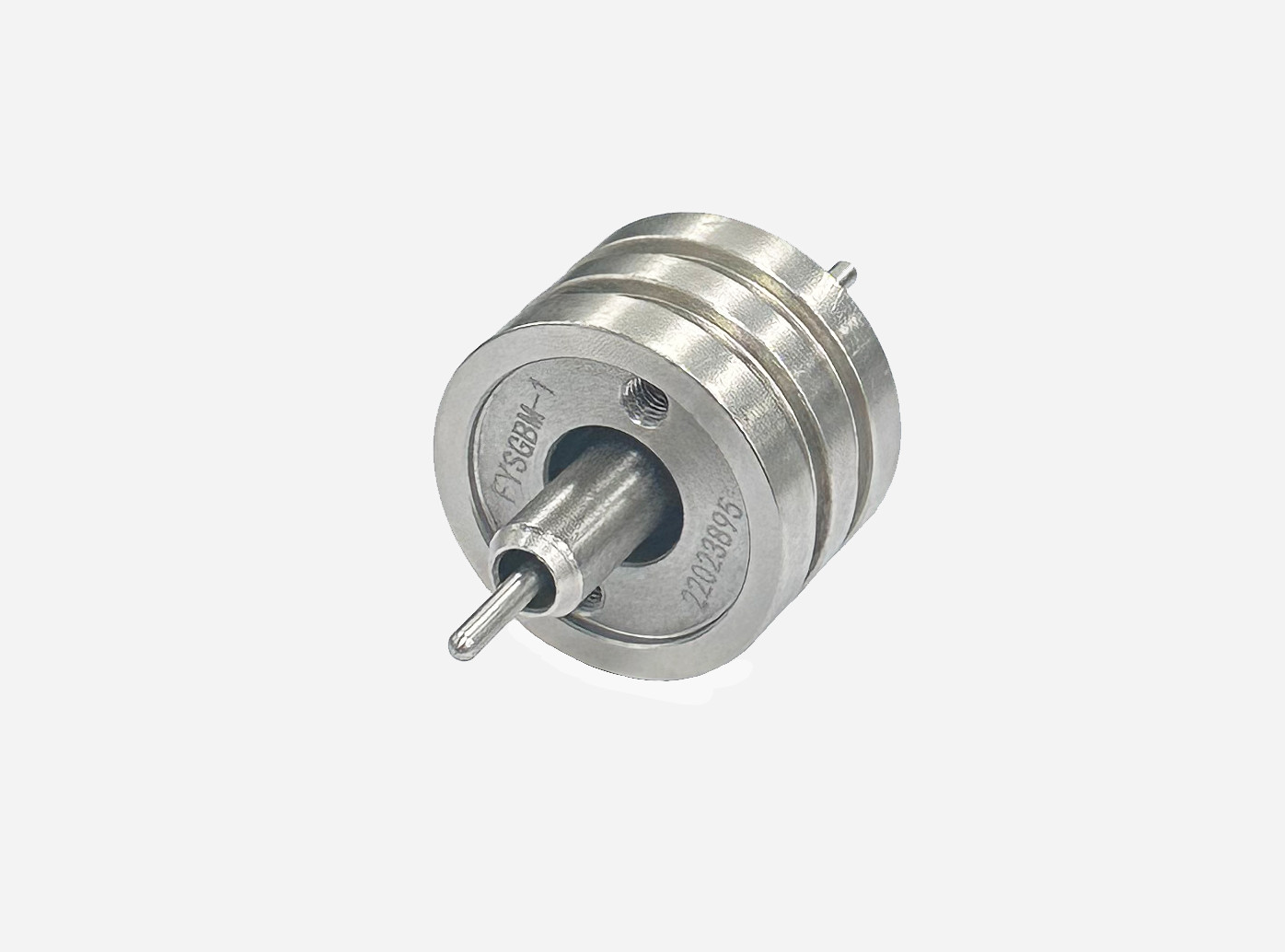

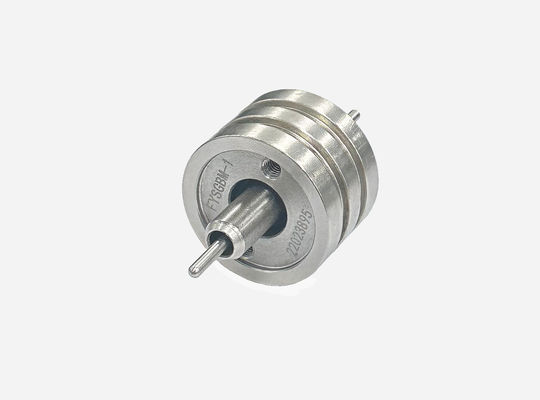

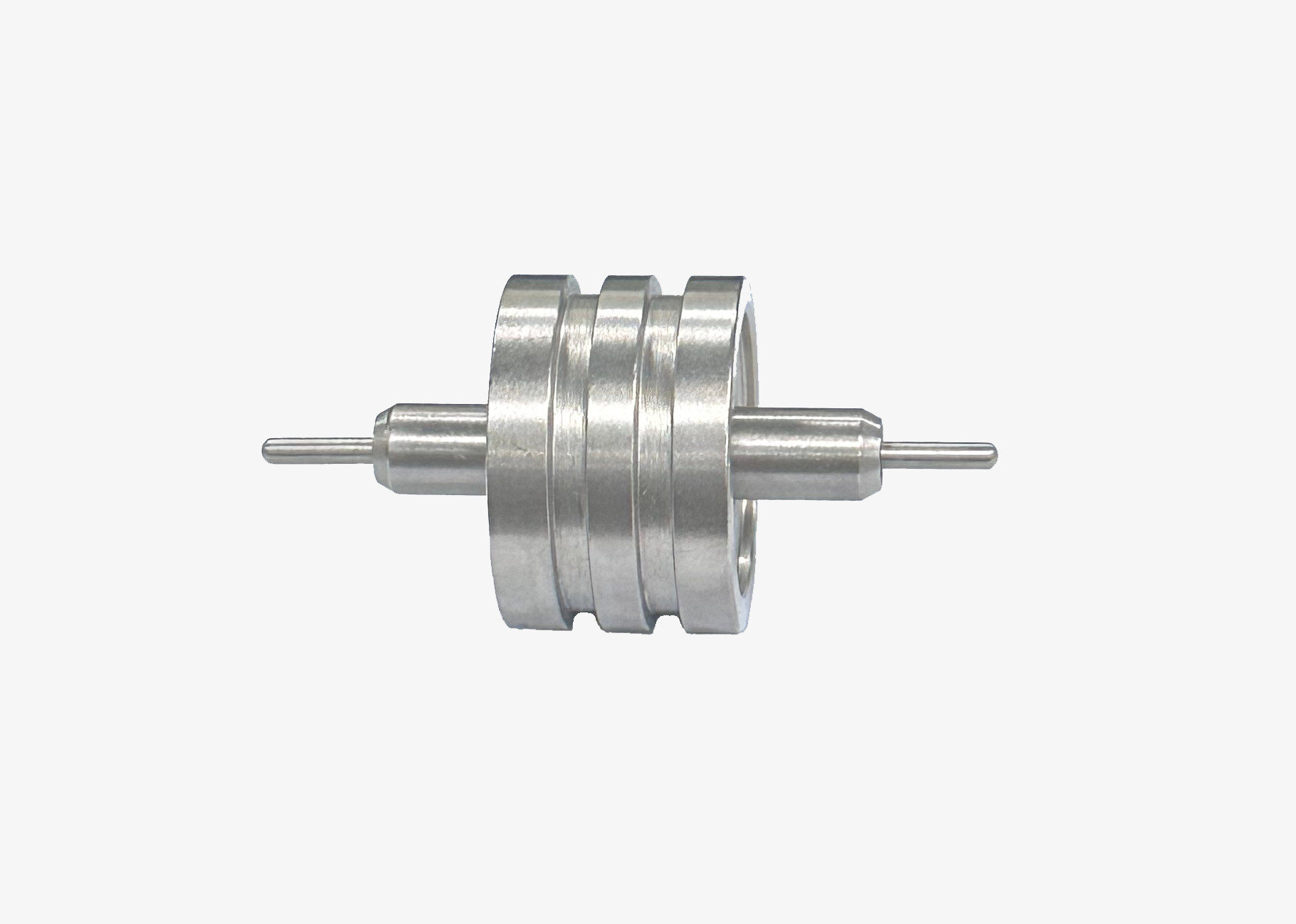

Sigillo ermetico di vetro a metallo personalizzato Feedthrough 2.5MPa non perde
| High insulation performance: | Prova statica a 500VDC, isolamento maggior di 5000MΩ | High sealing performance: | 2.5MPa non cola |
| High voltage resistance: | ≥2000VAC, perdita ≤0.5mA corrente | Corrosion resistance: | Riferisca allo spruzzo di sale GB/T2423.17 standard, che può raggiungere il livello di 8 o sopra |
| Resistant to various refrigerant and refrigerant oil: | Refrigerante di R114a, di R410a, di R22 e di CO2 | Thermal shock resistance: | Può mantenere il normale funzionamento nell'ambiente da meno 40 ℃ a 300 ℃ |
| High Light: | Stagno di vetro a metallo Feedthrough 2.5MPa,Feedthrough di vetro a metallo personalizzato |
||
Codice di certificazione IATF
Industrial Electroless Nickel Glass-Metal Seals For Durable Performance Product Description: We can give different types of sintered seal connector terminals in accordance with the requirements of customers. The technical parameters of our produced terminals are as follows: Material: 45 Steel Hi-pot...
ODM di metallo a vetro sigilli industriali con gamma di pressione 2-5MPa
45 Steel Industrial Glass To Metal Seals With Pressure Range 2-5MPa Product Description: We offer a variety of customized sintered seal terminals, designed specifically to meet our customers' requirements. Performance parameters of these terminals typically include: Material: 45 Steel Hi-pot: 3000v ...
Termini di sigillatura sinterizzati personalizzati
Industrial Metal-Glass Seals -70C To 300C Temperature Range Product Description: We can customize sintered seal terminals based on customer requirements.The performance parameters for the terminals produced are as follows: Material: 45 Steel Hi-pot: 3000v leak current ≤ 0.5mA IR: 1000V IR > 1000MΩ ...
12V-540V tensione nominale vetro a metallo sigillo di compressione 4MPa senza perdite
Industrial 2-5MPa Pressure Range Glass To Metal Seals 12V-540V Voltage Rating Product Description: We can customize different sintered seal terminals to meet customer needs. The parameters of the terminals produced are as follows: Material: 45 Steel Hi-pot: 3000v leak current ≤ 0.5MA IR: 1000V IR > ...
